Marching into Action

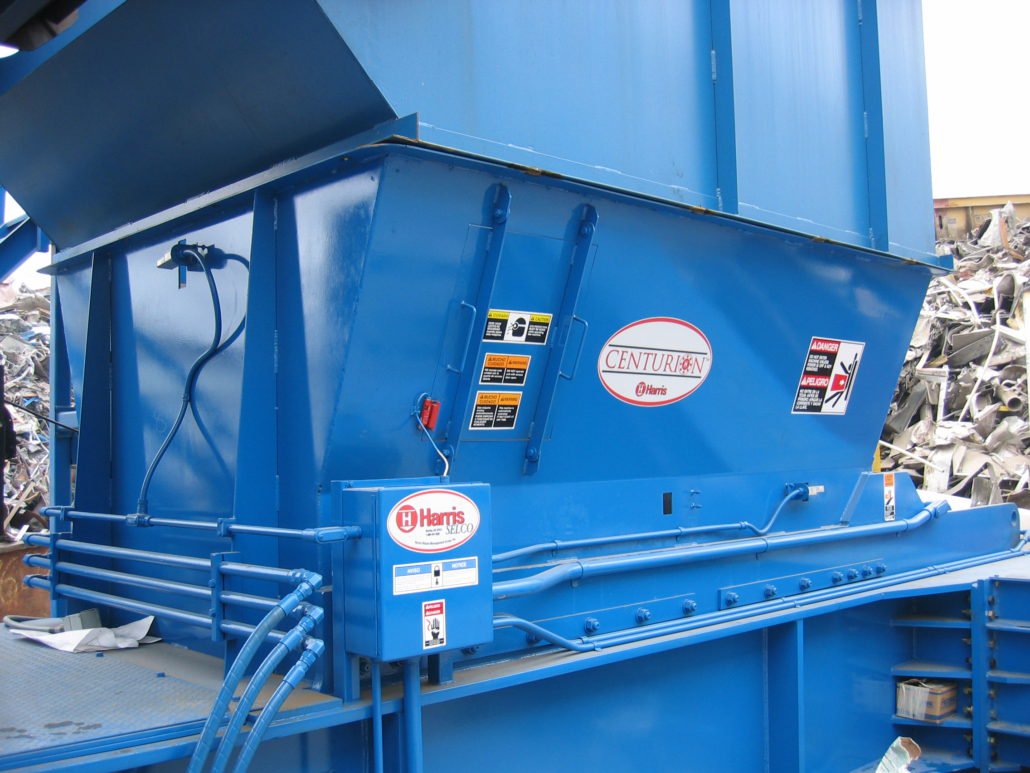

The popular Harris Centurion is a high-performance two ram baler designed specifically for medium to high volume applications.
Solid and Stout
The Centurion, like all Harris two ram balers, is designed with a solid uni-body construction – a solid one-piece body design. The uni-body construction design gives Harris two ram balers added strength and rigidity to handle difficult materials in difficult applications.
Total Precision Control
All Within Arms Reach
The Centurion, and all other Harris two ram balers feature total control user interface terminals which include a multi-function touch screen display with up to the second diagnostic and production information. Couple that with a custom production system built by Harris and you will have the most efficient and productive facility around.
Precision Movements
The Harris Centurion two ram features laser guided hydraulic ram cylinders and electronic pumps for millimeter precision control on each cycle.
Way Heavy Duty, Man
Robust Structure
The Centurion has additionally reinforced bale chamber with thicker and additional interlocking ribs. It also has a thicker combo-door to withstand more force.
Massive Shear Knife
The large shear knife is both thicker and taller than traditional two ram baler knives to handle the increased shear force from the 300 ton force main ram cylinder.
Easier Maintenance, Decreased Down Time
Adjustable Knives
The smart knife system Harris utilizes on all our two ram balers allows for less down time and since shims are not used we save you money two ways.
Wear Parts
Harris utilizes thicker wear liners throughout our two ram line giving our customers longer run time between scheduled maintenance and replacement. We use AR500 wear liners, exceeding our competition.
Centurion Video
Materials Designed to Process
Designed for these Facilities
| MACHINE SPECIFICATIONS | |||
|---|---|---|---|
| MODEL | HRB-CENTURION-150 | HRB-CENTURION-200 | |
| BALE SIZE | Width Height Length | 45" 31" 64" | 45" 31" 64" |
| BALE VOLUME | cu.ft. | 51.5 | 51.5 |
| CHARGE BOX OPENING | inches | 57" x 105.5" | 57" x 105.5" |
| HOPPER OPENING | inches | 86" x 116.5" | 86" x 116.5" |
| MAIN PUMP | 403 | 672 | |
| SYSTEM PRESSURE | PSI | 3500 | 3500 |
| MAIN RAM FACE PRESSURE | PSI | 280 | 280 |
| EJECTOR RAM FACE PRESSURE | PSI | 209 | 209 |
| SHIPPING WEIGHT | tons | 57 | 57 |
| CAPACITY | Bulk OCC Solid Waste Newsprint Al. Cans Steel Cans Plastic Non-Ferrous | 23-35 T/hr 39-59 T/hr 34-45 T/hr 13-22 T/hr 34-46 T/hr 11-21 T/hr 22-37 T/hr | 22-37 T/hr 37-63 T/hr 33-44 T/hr 10-30 T/hr 32-58 T/hr 13-31 T/hr 20-50 T/hr |
| BALING MATERIAL | Bulk OCC Solid Waste Newsprint Al. Cans Steel Cans Plastic Non-Ferrous | 1250-1550lbs 1820-2340lbs 1375-1750lbs 1000-1200lbs 1550-2250lbs 1250-1650lbs 1500-2400lbs | 1250-1550lbs 1820-2340lbs 1375-1750lbs 1000-1200lbs 1550-2250lbs 1250-1650lbs 1500-2400lbs |
